- More than 20 Years
Of Electric Spindle Production Experience

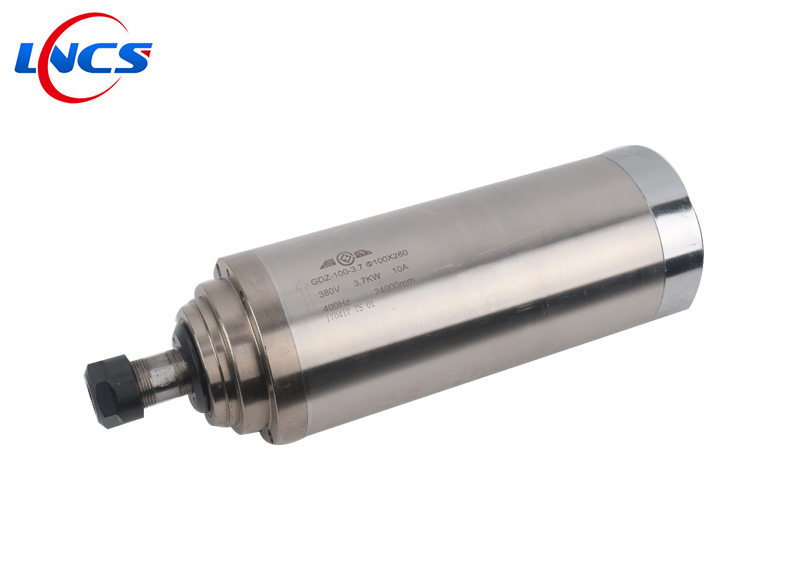

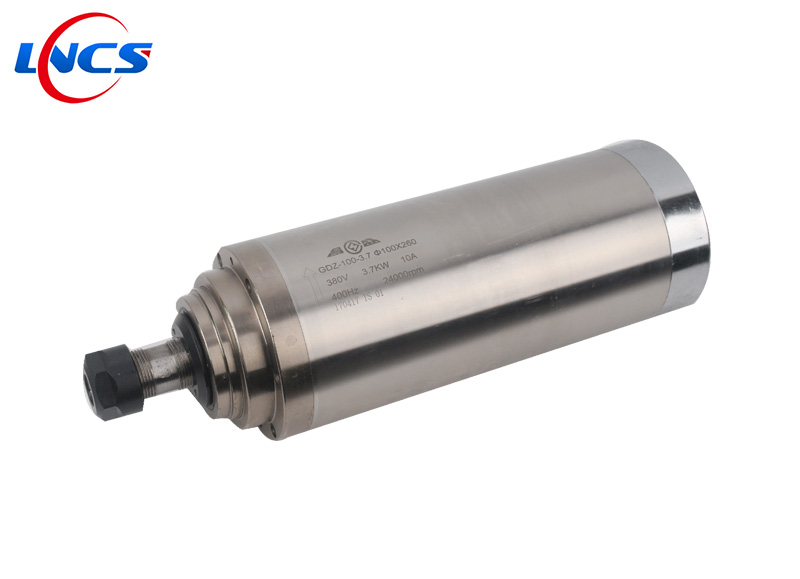

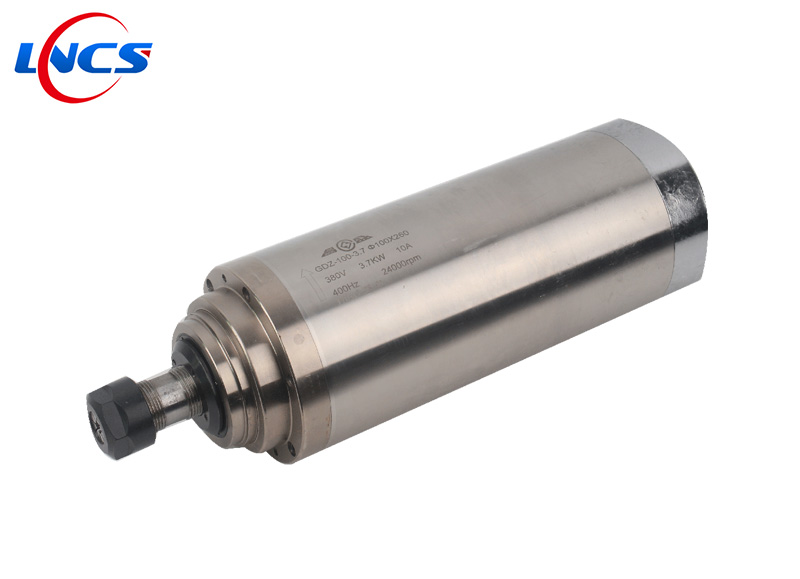

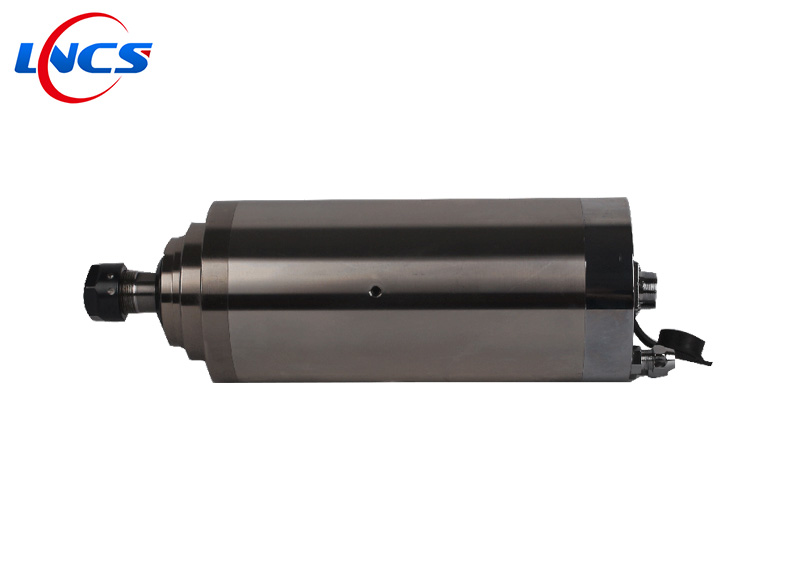

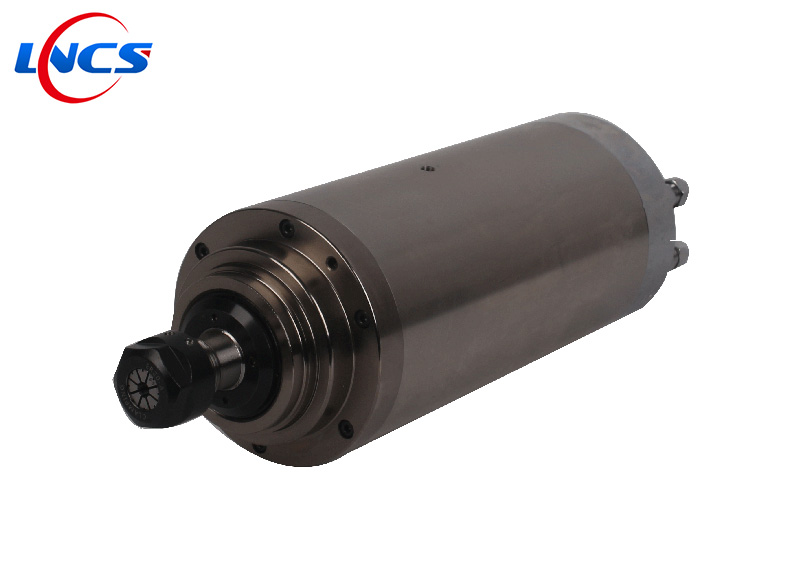

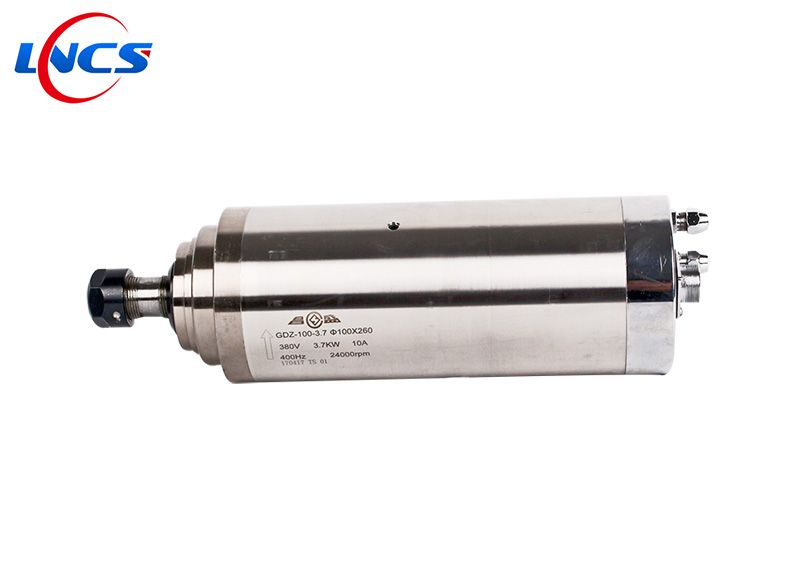

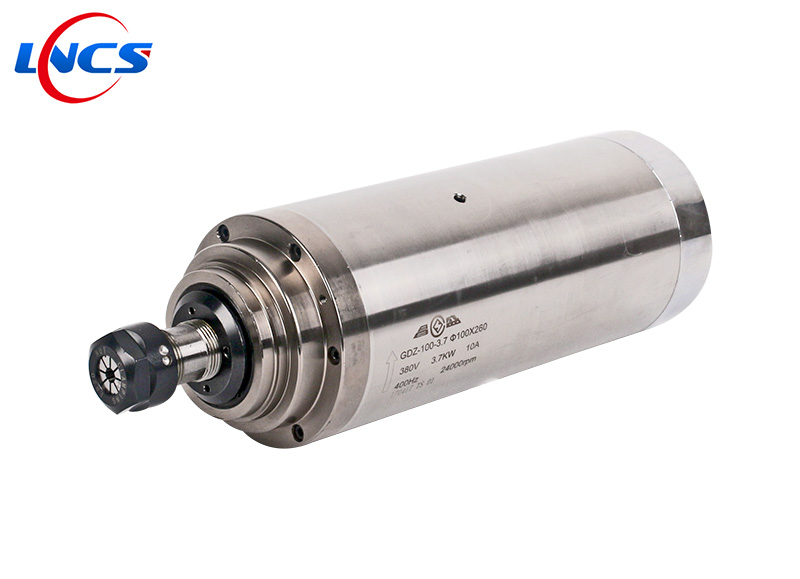

Model No | GDZ100-3.7 |
Brand Name | CHANGSHENG |
Power | 3.7KW |
Speed(R/Min) | 24000RPM |
| Voltage | 380V/220V |
| Current | 10.0A/11.0A |
Frequency | 400HZ |
| Collet | ER20 |
Lubrication | Grease |
Cooling Type | Water Cooling |
Weight | 11.6KG |
| Bearing Type | 2*7005C P4+2*7003C P4 |
Warranty Period | Bearings for six month, other parts for one year |
Application | Be used in internal and external grinding, precision engraving, CNC drilling, milling equipments, edge bander and so on. |
Certification | ISO9001, CE, SGS, ROHS |
